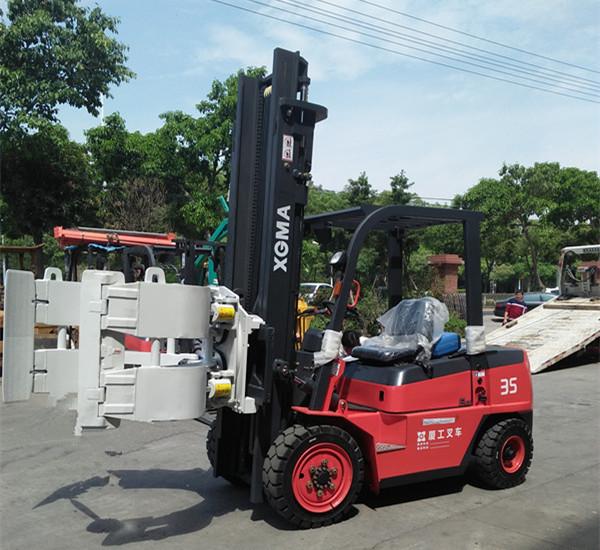

XGMA 3.5 ton forklift with 6m lifting height, diesel forklift
XGMA Forklift Specification:
| Character | 1.1 | Manufacturer | | XGMA |
| 1.2 | model | | CPC35 | CPCD35 |
| 1.3 | Product name | | XG535-D5 | XG535-DT5 |
| 1.4 | Power size | | Diesel |
| 1.5 | Rated Capacity | kg | 3500 |
| Dimension | 2.1 | load center distance | mm | 500 | 500 |
| 2.2 | Lifting height | mm | 3000 | 3000 |
| 2.3 | Free lifting height | mm | 150 | 150 |
| 2.4 | Mast tilt | α/β | 6/12 | 6/12 |
| 2.5 | Overall Length | mm | 3860 | 3860 |
| 2.6 | Overall Width | mm | 1220 | 1220 |
| 2.7 | Mast without lifting height | mm | 2160 | 2160 |
| 2.8 | Right Angle stacking min. channel width | mm | 4100 | 4100 |
| 2.9 | Overhead height | mm | 2150 | 2150 |
| 2.11 | Fork(L*W*H) | mm | 1070*125*50 | 1070*125*50 |
| 2.12 | Front overhang/Rear overhang | mm | 480/555 | 480/555 |
| 2.13 | Wheel distance | mm | 1760 | 1760 |
| 2.14 | Min. Turning radium | mm | 2420 | 2420 |
| Specification | 3.1 | Min.ground clearance | mm | 140 | 140 |
| 3.2 | Max.driving speed(Empty load) | km/h | 20 | 20 |
| 3.3 | Lifting speed(Full load) | mm/s | 360 | 360 |
| 3.4 | Max.traction | KN | 16 | 16 |
| 3.5 | Gradeability | ° | 20 | 20 |
| Tires | 4.1 | Overall Weight | kg | 4550 | 4550 |
| 4.2 | Front tire size | | 28*9-15-14PR | 28*9-15-14PR |
| 4.3 | Rear tire size | | 6.50-10-10PR | 6.50-10-10PR |
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | 1000/980 |
| Driving,transmission gear device | 5.1 | Engine Model | | 4JG2PE-01 |
| 5.2 | Eninge rated power/rotate speed | kw/r.p.m | 45/2450 |
| 5.3 | Max.torque/rotate speed | N.w/r.p.m | 184.7/1700 |
| 5.4 | Gears (Front/Rear) | | 2/2 | 1/1 |
| 5.5 | Battery(Valtage/capacity) | V/Ah | 12/80 |
| 5.6 | Fuel box capacity | L | 70 |
| 5.7 | Hydraulic oil box capacity | L | 70 |
XGMA 3.5T Forklift Product Features
1. Structural painting is used to highlight the shape, waist line and color assortment.
2. The boarding platform adopts stainless steel molding which is rust-proof, anti-corrosion, anti-aging, and durable with high strength.
3. The round arc rearview mirror is used to realize 180° of view. It is good looking and with higher safety.
4. The oil filler cap is molding with lock added. It is good looking and also can prevent the fuel being stolen.
5. The German brand Mann-Hummel double–element air filter is adopted with 99.85% of filter efficiency and 249.3g/m3 of dust storage ability.
6. The German brand Mann-Hummel oil-water separator is adopted. The whole machine uses LED lighting, the power consumption is 38.5% of normal lights, and it is brighter and gentler with service life 10 times of the normal
lights.
FAQ
1.What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4.What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5.Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
