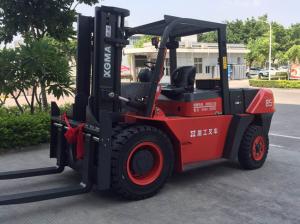

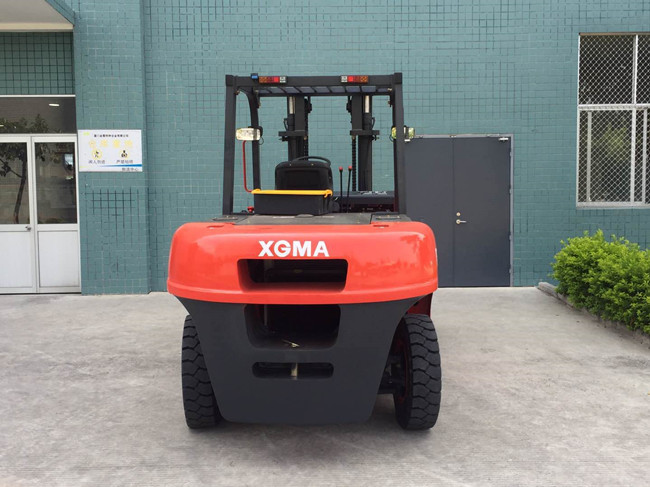

Heavy duty widely views long fork 8.5 ton diesel forklift truck
Improved Ergonomics
There is a pair of headlamp on overhead guard and mast respectively to increase working brightness.
The clearance between seat and overhead guard is no less than 1m and thus the space over operator head is enlarged.
Improved Safety Reliability
Half shaft sealing technology on drive axle end improves sealing reliability and reduces after-sale service cost.
Clearance buffering structure on lifting cylinder bottom makes goods lowering stable and improves working safety.
Easy Maintenance
Extraposition structure of transmission box oil filter and hydraulic return oil filter makes maintenance and repair easy.
Air cleaner assembled on truck meeting China emission standard stage III has good universality.
Service access is added between balance weight and overhead guard and it is easy for maintenance.
XGMA 8.5 ton forklift Specification:
| Model |
|
CPCD85 |
| Power type |
|
Diesel |
| Rated capacity |
kg |
8500 |
| Load center |
mm |
600 |
| Mast height (with backrest) |
mm |
4420 |
| Max. lifting height |
mm |
3000 |
| Free lifting height |
mm |
200 |
| overall height (overhead guard) |
mm |
2560 |
| overall length(with fork) |
mm |
5160 |
| over width |
mm |
2165 |
| min ground clearance(at the mast ) |
mm |
250 |
| min turning radius(exterior) |
mm |
3700 |
| min .right angle stacking aisle width |
mm |
3310 |
| fork size (LXWXH) |
mm |
1220X170X70 |
| max.travelling speed (loaded/unloaded) |
Km/h |
26/30 |
| max.traction force(loaded/unloaded) |
Kn |
63 |
| max.gradeability(loaded/unloaded) |
% |
25/21 |
| tyre type |
|
Pneumatic tyre |
| engine model |
|
xichai CA6110 |
| rated power |
kw/rpm |
83/2000 |
| rated torque |
Nm/rpm |
150/1400-1500 |
| total weight (oil included) |
kg |
10960 |
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
